ZAXCOM ERX3-TCD
- Zaxcom ERX3-TCD IFB audio receiver with timecode output and delay
- RECEIVER: RF frequency: 2.403 GHz to 2.475 GHz RF bandwidth: 1 MHz frequency interval: 2 MHz system channels: 36 TIMECODE: timecode output: SMPTE

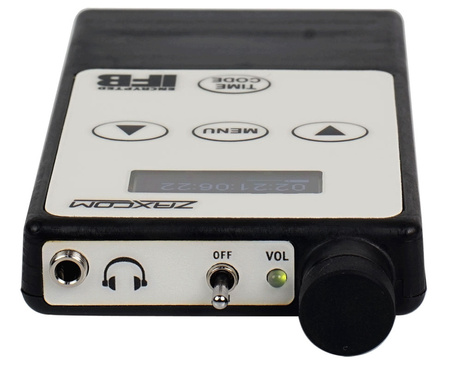

ERX3-TCD features an OLED display, locking headphone connector and a practically unbreakable rubber volume knob. The OLED display shows timecode, user bits, and current Scene and Take metadata in real time, with a hold button to freeze the display.
An adjustable delay can be set to suit monitors with different video delay due to video signal processing. Mounted on a camera, the ERX3TCD can provide accurate frame timecode without drift as it constantly receives and updates its timecode from the source. A 1kHz notch filter is also available to eliminate the tone transmission that is sometimes sent from the mixing console. The frequency of the notch filter is adjustable and its use will not affect the IFB sound quality. FEATURES: audio: monitor high-quality sound anywhere on set or mount ERX on camera to transmit soundtrack as timecode remote: mount on camera or digital tablet to transmit accurate timecode wirelessly. ERX will constantly send timecode from any ZaxNet transmitter, so you'll never experience a timecode shift delay: director on set, script in Video Village? No problem ... with ERX you can delay the audio up to 12 frames to match their image encrypted audio: keep the transmitted audio private timecode: built-in timecode reader and Zaxnet generator: provides wireless timecode, ZaxNet audio and remote control between Zaxcom products
