- - MRX414 is a module designed for the Zaxcom Nova recorder,
- Zaxcom RX-12 / RX-12R receivers and Zaxcom RX-4 interface.
- - Allows you to receive signals from four transmitters
- (or two stereo transmitters).
- Available in two configurations:
MRX414-L - block coverage 20 - 23 (512 - 614 MHz)
MRX414-H - block coverage 23 - 26 (596 - 698 MHz)

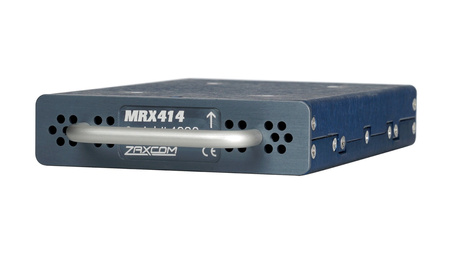

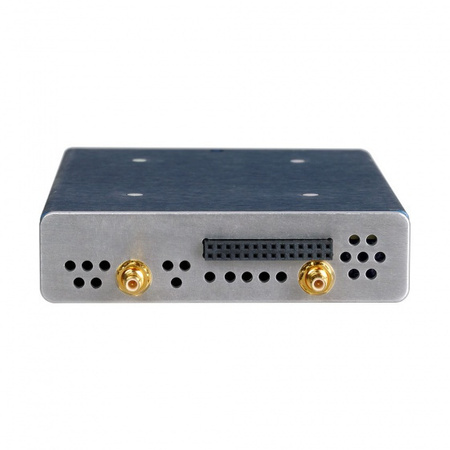

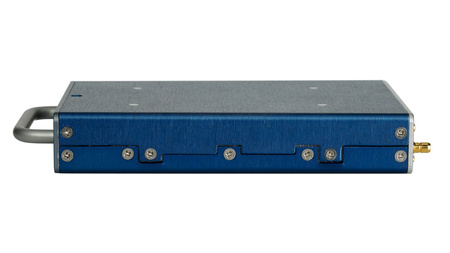

MRX414 is a module style receiver compatible with the Nova mixer / recorder, RX-4, RX-8, RX-12, and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter within it’s host device to combat interference and extend range. The module is compatible with any Zaxcom digital recording wireless transmitter and with all current Zaxcom modulations (Mono, Stereo, XR and ZHD96).
Let’s break down the name – M (module) RX (receiver) 4 (four transmitters) 1 (for no reason) 4 (up to 4 channels of audio).
Part of Zaxcom’s 4th generation of digital wireless receiver technology the MRX414 sets a new standard for RF performance. The ultra-low noise floor (-135 dB) RF design will provide an ultra-long range. The MRX is almost impossible to overload. Close distance transmitters have virtually no effect on the reception of distant transmitters. The RF performance exceeds the previous generation of Zaxcom receivers by 5 dB while enhancing the rejection of interfering signals from things like walkie-talkies, cell phones, and HD Television transmission by 10 dB.
The MRX414 is an extremely efficient digital wireless receiver – the module draws 300 mA @ 13 VDC (150 mA per receiver).
