TENTACLE Track E - Basic Box

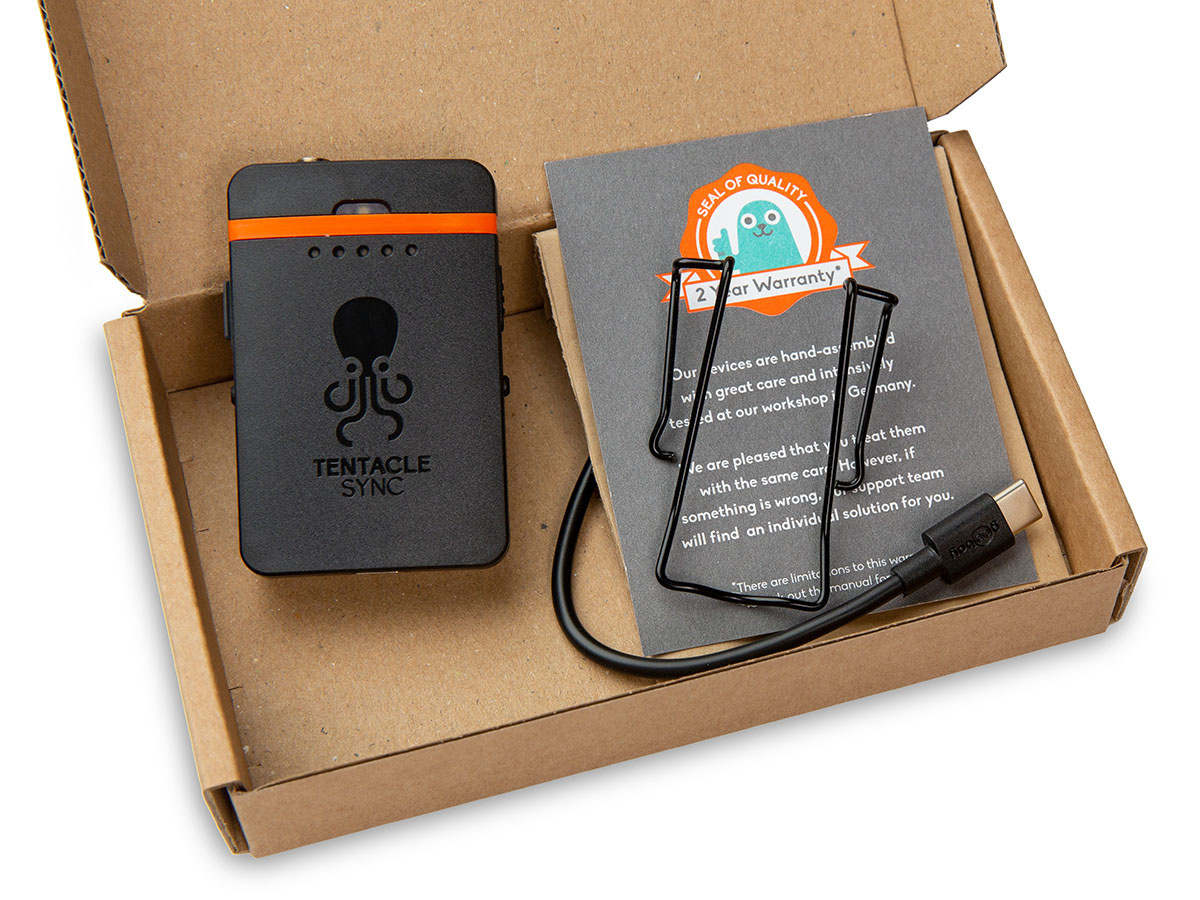

- This Basic Box is stripped down to its essentials: It contains one TRACK E Pocket Audio Recorder, a belt clip and a charging cable. Nothing else…
For the full TRACK E Pocket Audio recorder set with everything you need to get started see TRACK E Timecode Audio Recorder
FEATURES
32-bit Float Recording / 24-Bit Recording
Control Multiple Devices via Bluetooth® (iOS & Android)
Wireless Timecode Sync (Bluetooth®) / Jam-Sync via Cable
Wireless Audio Monitoring via Bluetooth® (iOS & Android)
Up to 10 hours Operating Time
2 Year Limited Warranty
Designed and Manufactured in Germany
TECHNICAL SPECIFICATIONS
Recording
Number of Tracks: 1
Sampling Rate: 48 kHz
Recording Bit-Depth: 32-bit Float / 24-bit
Recording File Formats: WAV (BWF)
Recording Time: 30hrs (24-bit) / 23hrs (32-bit Float) with 16GB Card
Storage Media: microSDHC Card up to 32GB (Class 10)
Signal Processing: Low Cut Filter, Limiter (24-bit only)
Connectivity
Microphone Input: 3.5mm Jack (screw lock)
Mic Plug-In Power: 5 V (switchable)
Headphone Output*: 3.5mm Jack
USB Connection: USB-C (USB 2.0)
USB Modes: Charging, Card Reader, Firmware Update
Performance
Frequency Response: 20Hz – 20kHz
Gain Range: +6 to +46dB
Dynamic Range: 110dB typ
THD+N: ≤ -85 dB (0,05%)
Control & Sync
Bluetooth®: 5 Low Energy
Remote Control: Tentacle Setup App (iOS/Android)
Synchronization: Via Bluetooth® (Tentacle Setup App) or Jam-Sync via Cable
Audio Control: Wireless via Bluetooth®
Timecode Input: LTC via Mic In
Timecode Output: N/A
Frame Rates: SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30
Power
Power Source: Built-in rechargeable Lithium Polymer Battery
Battery Capacity: 900 mAh
Battery Operation Time: approx. 10 Hours
Battery Charging Time: max. 2 Hours
Mounting: Belt Clip (removable) – Black Powder-Coated Stainless Steel
Weight: 58 g / 2.1 oz
Dimensions: 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches
* In the US version the headphone output is deactivated during recording.
Recommended microSD Cards
Recommended are SanDisk/WD 8/16/32GB or similar high-grade Class 10 SDHC up to 32GB. We have tested the following cards:
SanDisk Edge 16GB/32GB
SanDisk Ultra 16/32 GB
SanDisk Extreme 16/32GB
SanDisk Extreme PRO 16/32GB
