WRINEX WX508 NP50 battery charger
- A Hand-made charger for your Np50/LB50 batteries, it has the smallest form factor of all NP-50/LB50 chargers currently on the market. (HxWxL) 4.92 x 11.4 x 6.4 cm.
Brand
Symbol
WRI WX508
- Charges 8 NP50/LB50’s Simultaneous.
- Oversized Converter that can supply up to 2.5 times the current required, to run cooler and increase reliability.
- Matched Charging chips with 1% accuracy. (all pcb’s are tested manually). 4.16-4.24 volt with a bias towards the lower end to achieve longer battery life.
- Swiss-made gold-plated spring-loaded battery contacts.
- External power supply from a well-known brand (Meanwell)
- Passive cooling.

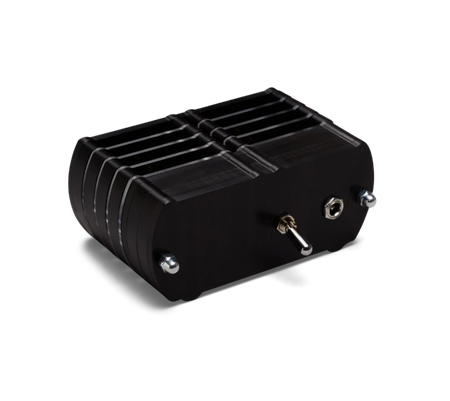

- A reset/on-off switch with protection so you can't bump it by accident.
- Ability to be fed by a DC power source between 12-32 volts DC (Cart battery a Car, or a laptop brick
- Weight ~500 grams. (excluding power supply)

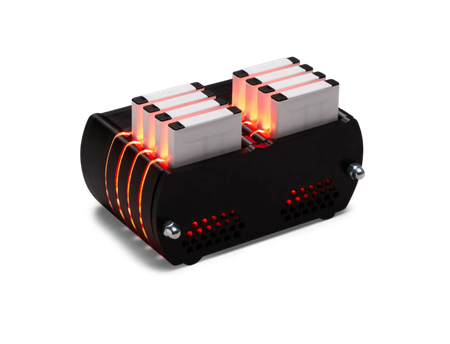

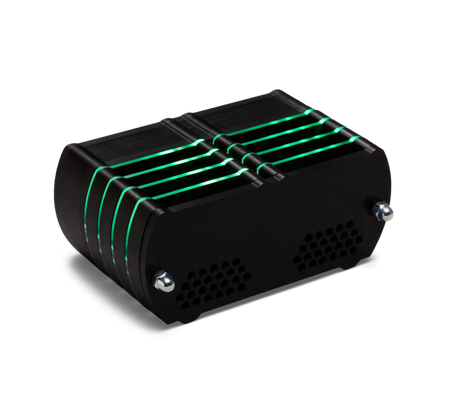

- Dual LED: On each side of the slot, green or red LED so you can see which slot is charging more clearly, without being able to see the different colors.
You can easily take it with you on smaller projects and will function all around the world with an appropriate power plug. (The charger does not come with an IEC plug because of this)
Click here for the manual.
