DEITY MICROPHONES V-MIC D4 DUO DUAL CAPSULE
- The D4 DUO’s dual-capsule design allows you to simultaneously capture sound from in front of and behind your camera. Don’t just show your audience the world you live in, tell them about it in full fidelity too!
Brand
Symbol
DEI-VMICD4-DUAL
The V-Mic D4 DUO lets you capture the story you want to tell, from every angle. With its unique dual-capsule design and utility, the DUO allows you, for the first time ever, to record the audio coming from behind the camera in full fidelity.
Following our company motto of “Do More. Carry Less.” the DUO has a 3.5mm AUX input that bypasses audio from the rear capsule and sends the input to the right channel of your camera – perfect for adding a wired lavalier mic or a miniature wireless microphone receiver like the Pocket Wireless.
The V-Mic D4 DUO runs completely off the 3V Plug-In Power provided by your camera’s microphone jack. Plus, that bias voltage is passed along through the 3.5mm input jack on the D4 DUO, allowing you to use passive TRS lavalier microphones.

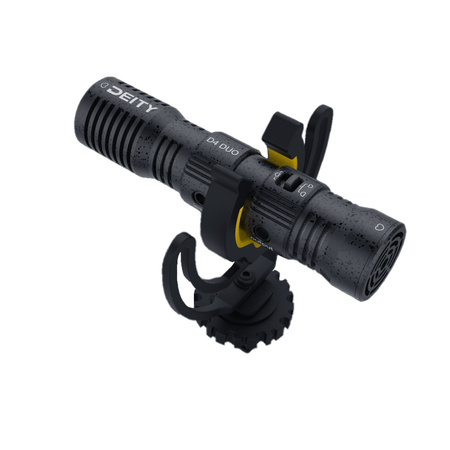

Deity Microphones and Rycote partnered up to create a custom thermoplastic polyester shock mount for the V-Mic D4 DUO that is stiff enough to support the weight and keep the microphone balanced but also prevents camera handling noise from being transferred to the microphone.
| Frequency Response | 50Hz-20KHz |
| Capsule Size | 14mm |
| Pickup Pattern | Dual Cardioid |
| Capsule Type | Prepolarized |
| Sensitivity | Front(-42±3dB re 1 V/Pa @ 1kHz) / Rear(-51±3dB re 1 V/Pa @ 1kHz) |
| Maximum SPL | 120dB(@1KHz,1% THD into 1K) |
| Microphone Type | Passive |
| Operating Voltage | External Bias Voltage |
| AUX Input Connector | TRS 3.5mm |
| AUX Input Voltage | 2-5VDC |
| Output Connector | TRS 3.5mm |
| Output Type | Dual Mono / Stereo |
| Material | Aluminum |
| Dimensions | 21mmD x 93.5mmH |
| Weight | 40g |
