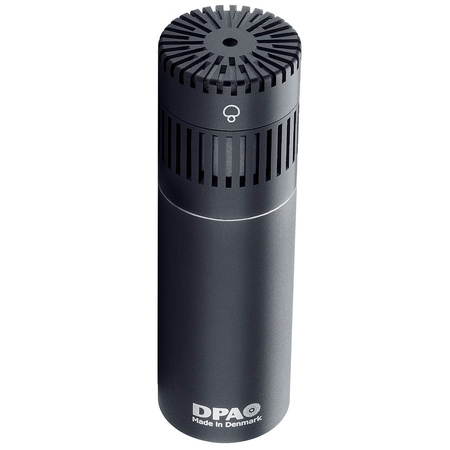

DPA MICROPHONES 4018C Compact Supercardioid Microphone
- -Highly directional compact supercardioid
- -Uniform directionality
- -Low noise and high sensitivity for distant positioning
- -Very sleek and compact boom, table, or spot mic
The 4018C is a compact supercardioid booming microphone and is part of the modular DPA d:dicate recording microphones series. At only 6.4cm, the 4018C has a highly directional super-cardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency-independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018C making it much more isolated without sudden frequency-dependent peaks and dips. Designed for a broad range of broadcast/ENG/film long-distance miking applications, such as booming, dialogue, interview, and table or podium use, the 4018C offers superbly flexibility through modular accessories. The 4018C is also ideal for use as a spot or hanging mic for orchestra recording situations.
- Directional pattern: supercardioid
- Principle of operation: pressure gradient
- Cartridge type: pre-polarized condenser
- Frequency range: 20Hz to 20kHz
- Frequency range, +/-2dB: 40Hz to 18kHz
- Sensitivity, nominal, +/-2dB at 1kHz: 12mV/Pa, -38.4dB re. 1V/Pa
- Equivalent noise level, A-weighted: typ. 16dB(A) re. 20uPa (max. 19dB(A))
- Equivalent noise level, ITU-R BS.468-4: typ. 23dB
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): typ. 78dB(A)
- Total harmonic distortion (THD): <1% up to 137dB SPL peak
- Dynamic range: typ. 121dB
- Max. SPL, peak before clipping: 150dB
- Output impedance: 100Ohm
- Minimum load impedance: 2kOhm
- Cable drive capability: 100m
- Output balance principle: Impedance balancing with "Active Drive"
- Common mode rejection ratio (CMRR): >50dB
- Power supply (for full performance): 48V Phantom power (+/-4V)
- Current consumption: 2.8mA
- Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
- Color: matte black
- Weight: 58g
- Microphone/capsule diameter: 19/19mm
- Microphone length: 64mm
- Maximum output voltage, RMS: >4.5V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C
- Relative humidity (RH): up to 90%
- Matching tolerance (frequency response and sensitivity): +/-1dB
- Phase deviation for kit: <10°
