- Specification
- • Connector: MicroDot,
- • Black colour
- • Weight: 8 g,
- • Microphone length: 14.4 mm
- • Cable length: 1.8 m
- sensitivity, nominal, +/-3 dB at 1kHz: 20mV/Pa, -34dB re. 1V/Pa
- cartridge type: pre-polarized condenser
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94 dB SPL): typ. 70 dB(A)
- output impedance: from MicroDot, 30-40 Ohm. From DAD6001-BC, 100 Ohm
- cable drive capability: up to 300 m with DAD6001-BC XLR adapter
- power supply (for full performance): for wireless systems, min. 5V to max. 10V through DPA adapter. With DAD6001-BC, 48V phantom power +/-4 V for full performance
• Water-repellant nano-coating of the cover and housing
• Hermetic sealing of the sensitive amplifier at the core of the mic
• Dual gold plating of the diaphragm

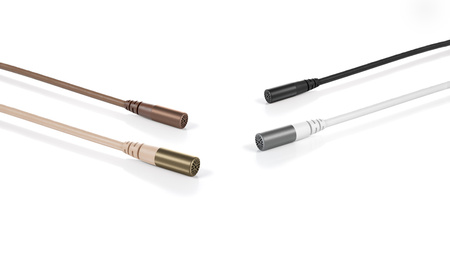

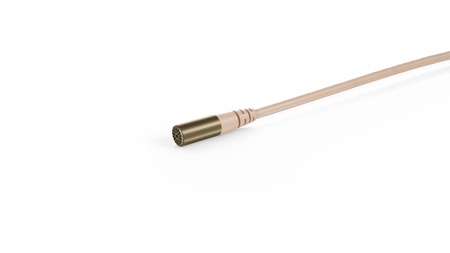

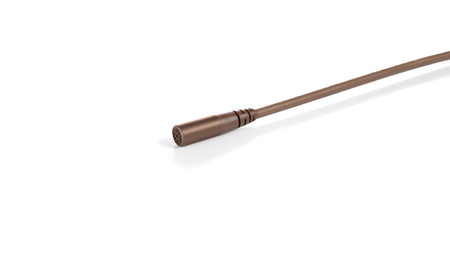

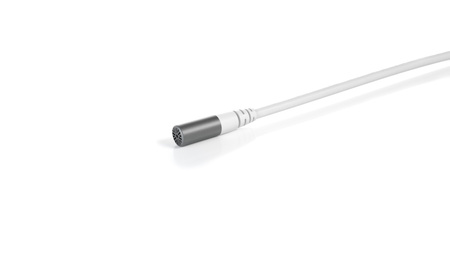

6060 CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.
CORE by DPA is a powerful new technology at the heart of our miniature microphones. We’ve minimized distortion. From a whisper to a scream, you will experience increased clarity and openness.
Now we've taken the amazing CORE technology and shrunk it down to fit into our (0.12 in) subminiature mics. This means that, despite their small size, the performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.
The cable and capsule design ensure immunity to noisy wireless devices. These mics are typically connected to a wireless belt pack and we offer a comprehensive mix of adapters to suit the many wireless transmitters available. When used with an adapter, the connector is our MicroDot but we also offer hardwired terminations to suit the most popular systems from manufactures such as Shure and Sennheiser. All of our connectors are equipped with a rugged strain relief.
It’s the only 3 mm (0.12 in) subminiature lavalier microphone that gives you the DPA sonic quality that you know and love.
