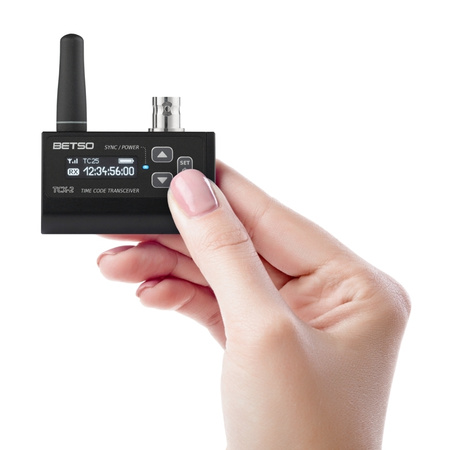

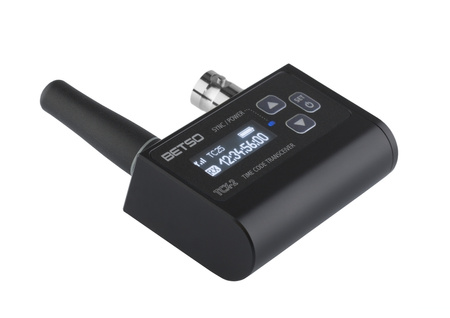

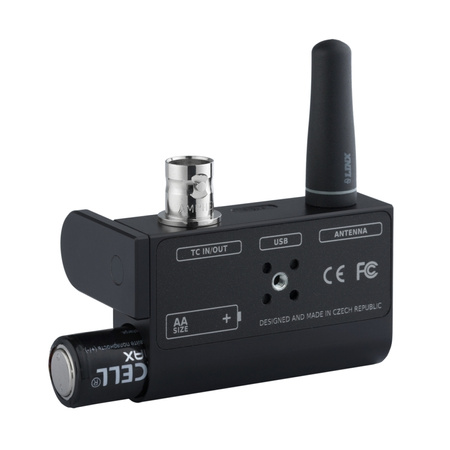

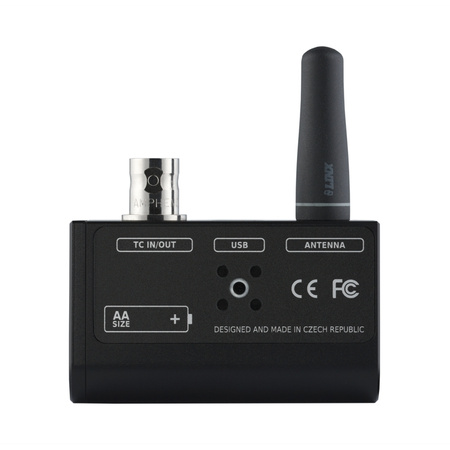

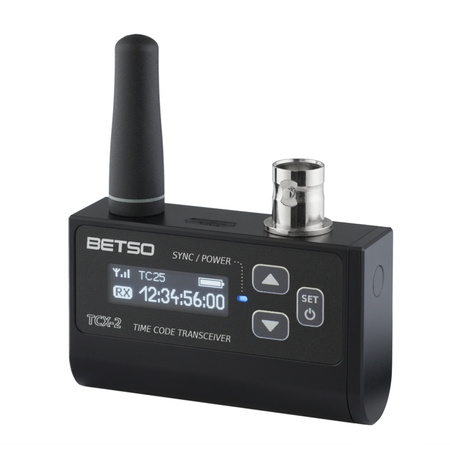

BETSO TCX-2+ Transceiver i generator TC
- BETSO TCX-2+ is a compact TC generator and transceiver. It is compatible with all SMPTE formats, has a wide OLED display, it's easy to use and requires only one AA battery to power it.
BETSO TCX-2 + is an ultra-compact, highly accurate TC transceiver and generator. It is based on a very easy-to-use philosophy "Plug and play" guaranteed by the wide OLED display and easy to replace single AA battery. The new RF transmission provides wireless continuous time code jamming with 0ppm error and clear status information for all connected devices to the network with the click of a button.
TC frames: 23.976 fps - 30 fps including DF and NDF modes (also multiples of 0.5 and 2 fps: supports 11.98 fps - 60 fps)
Output level: adjustable from -30dBu to + 6dB
TC Drift: less than 0.3 frames / 24 hours
TC Drift in RF transmission mode: 0 frames / 24 hours
RF output level: 10mW (10dBm)
Working time: up to 50 hours (with the lowest brightness of displays, RF transmission off, alkaline batteries)
Dimensions: 59 x 35 x 16 mm
Weight: 45 g
Power supply: 1x AA battery (alkaline or lithium) / 1x AA battery (NiMH, NiCd)
Power consumption: 50 - 100 mA (depending on the operating mode)
User manual: https://www.betso.eu/download/50/TCX-2_user_manual_EN.pdf
