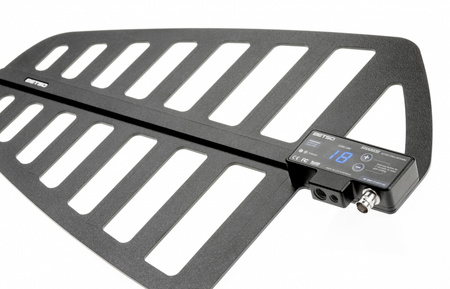

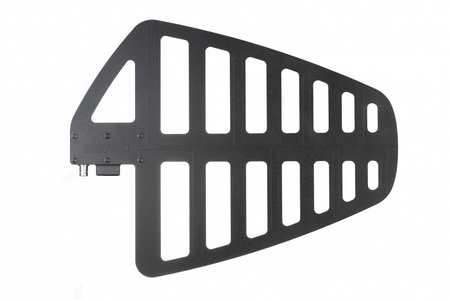

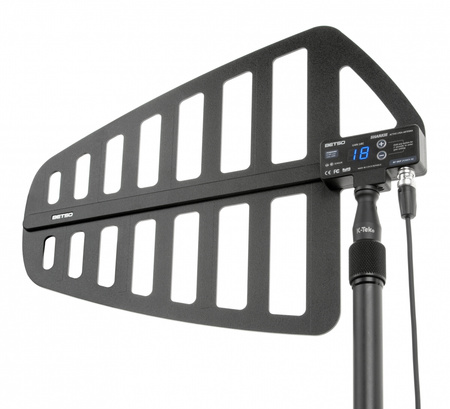

BETSO SHARKIE active wideband directional antenna
- Cardioid, broadband, active LPDA receiving antenna with a 470-850 MHz frequency range.
SHARKIE is a compact, broadband, active receiving UHF antenna with Log Periodic Dipole Array (LPDA) structure and cardioid directivity. The amplifier with low self-noise and easy gain setting is ideal for damping compensation when using a long antenna cable in the field. The solid mechanical construction guarantees carefree functionality both indoors and outdoors.
Frequency range: 470 MHz to 850 MHz
Built-in filters: high below 450 MHz, high above 870 MHz
Antenna gain: 8 dB of avarage gain
Antenna directivity: cardioid
Antenna polarization: linear
Amplifier gain: -9 dB - 18 dB
Amplifier IC noise: < 0.75 dB
Power: 5 - 20 V DC
Consumption: 35 mA
Mounting: 1/4 ″ or 3/8 ″
Dimensions: 275 x 350 x 21 mm
Weight: 320 g
User manual: https://www.betso.eu/download/32/SHARKIE_user_manual_EN.pdf
