Zaxcom ZMT 3.6-X

The transmitter works in mono or stereo mode (2 microdot microphone inputs).
Internal recorder with timecode (microSD).
Neverclip function.
The ability to change the gain, frequency and output power of the transmitter wirelessly via the Zaxnet protocol.


The ZMT3-X is our longest running and most durable transmitter for sound recorders. It is made of durable nylon polymer and rubber materials,

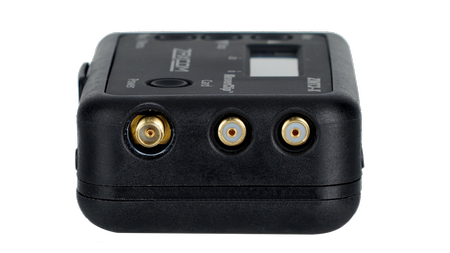

to maximize field performance. Supports two lavalier microphones in stereo mode or one lavalier in mono mode. The connection type is two microdot inputs.
The sound is transmitted using 100% digital modulation. Digital transmission enables audio encryption. Zaxcom uses an advanced encryption system,
to keep audio private. Transmitted sound can be recorded internally at the same time on the microSD card. The audio files are recorded using
the highly reliable lossless MARF format (Mobile Audio Recording Format), which eliminates file corruption typical for recordings caused by exhausted
battery or premature card removal.
The ZMT3-X provides the scope 118 dB dynamics in mono mode and 108 dB in stereo mode. It has a choice of 25, 50 or 75 mW power.

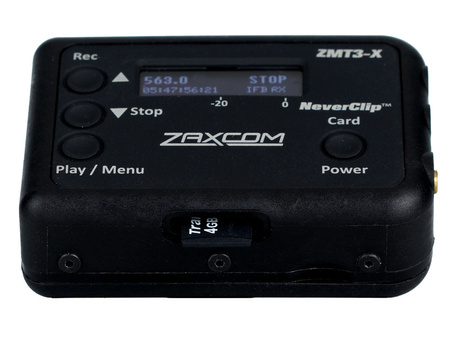

The OLED display shows key information. ZaxNet is a long-range remote control system that allows users to change the frequency,
input gain and output power without removing the transmitter from the actuator. Zaxcom High Density (ZHD) modulation increases the number
of available channels to 9 in one MHz of spectral space. Motorola BT100 battery provides up to 12 hours of work and 48 hours of standby
on a single charge.
The ZMT3-X can be ordered in one of two configurations:

ZMT3.5: Covers channels 26 to 38 (512 to 614 MHz)
ZMT3.6: Coverage of channels 36 to 49 (596 to 698 MHz)

TRANSMITTER:
RF modulation:
Proprietary digital method
RF frequency step: 100KHz
RF band in ZHD48 mode: 50KHz
RF band in ZHD96 mode: 100KHz
RF band in XR mode: 200KHz
channel separation in ZHD48 mode: 100 KHz
channel separation in the ZHD96 mode: 200 KHz
channel separation in XR mode: 400 KHz
antenna connector: 50 Ohm SSMA female
Emission Label: 180 KV2E, 100 KV2E, 50 KV2E
FCC part: 74.861

AUDIO TRANSMITTER:
dynamic range in mono: 118 dB
dynamic range in stereo: 108 dB
distortion: 0.002%
Frequency response: 0: 20 Hz to 16 kHz
mode high-pass filter: off or from 30 to 220 Hz,
degree: 10 (6 dB per octave)
microphone power: 3.3 VDC
microphone connector: two microdot
input range: -60 to -30 dBu
Mic impedance: 6.8 kΩ
ADC bit depth: 24 bits
ADC sampling frequency: 48 kHz
READER / GENERATOR TIMECODE:
clock accuracy: 1.54 PPM (1 frame in 6 hours)
timecode type: SMPTE
frame rate in timecode:
23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF

INTERNAL RECORDING:
media: microSD card (flash memory)
file format: .ZAX / converts to BWAV or MP3

2.4 GHz ZAXNET RECEIVER
RF frequency range: 2.403 to 2.475 GHz
RF modulation: digital spread spectrum
RF frequency step: 0.001GHz (1MHz)
RF bandwidth: 1 MHz
channel separation: 2 MHz
sensitivity: -96 dBm
