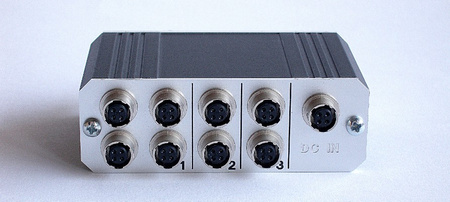

Audioroot eSMART BG-DU-REG
- Current distributor
- - Real-time SOC monitoring of the battery:
- - remaining capacity (%),
- - working time estimation,
- - battery voltage,
- - Energy consumption,
- - power and coulomb counter
- 8 switchable outputs via 3 interlocking switches
- Polyswitch 2.5A resettable fuses on each output
- A flashing LED indicates when the battery capacity drops below 10%
- Compatible with any 11 to 18 volt battery
- Hirose locking connectors
- Dimensions: 85x120x30mm
- Weight: 300g
eSMART BG-DU-REG is a compact and lightweight distributor with 8 secured outputs, 3 interlock switches, a fully functional voltage indicator and power regulators. - 2 x 12 V / 12 W fully isolated outputs on 2 Hirose connectors - these outputs can help you troubleshoot ground loops - 1 x 9V / 18W output on 2 Hirose connectors - these outputs can be used for powering wireless receivers and transmitters This product is designed for use in sound bags or small carts. Any type of battery (SLA, NI-MH or LI-ION) can be connected to the dispenser, and the current level indicator provides all the information needed for monitoring battery charge status (voltage, current, power, etc.). eSMART BG-DU-REG uses an internal coulomb counter and a calibration procedure for measuring the actual battery capacity and displaying its remaining capacity in real time. This power distributor is also fully compatible with a full line of Li-XXwh smart batteries.
Important note : A 4 conductor battery input cable is required for eSMART operation (i.e when connecting eSMART batteries to the BG-DU-REG). This cable is sold separately under reference eHRS4-OUT-4W. The 2 conductor Hirose battery output cable available under reference eHRS4-OUT will not enable battery data communications between the eSMART batteries and the BG-DU-REG. Please contact us or your dealer for more informations.
Note to Hawk-Woods products users : The wiring of Hawk-Woods products is incompatible with the BG-DU or BG-DU-REG out of box. On these products the internal pins of the Hirose male plugs are tied together 2 by 2 : pins 1 and 2 / pins 3 and 4. When using the BG-DU or BG-DU-REG pins 2 and 3 of the male Hirose plug connected to the unit’s input must be left unconnected as these are used for communication with smart batteries. Hawk-Woods users can solve this issue by rewiring the male Hirose plug (leaving pins 2 and 3 un-connected) or by removing 2 solder jumpers inside the BG-DU or BG-DU-REG. Please contact us for more details.
