AUDIOROOT eSMART TRIO
- Advanced portable smart battery distributor system that can distribute power from 3 independent power sources (3 batteries or 2 batteries and external AC/DC power supply) to 8 outputs (7 x Hirose, 1 x TA4F) and 2 USB ports (1 x USB-A, 1 x USB-C).
Save by buying more
Audioroot Power Kit - eSMART TRIO + 2x eSMART Li-98Wh 14.4V + eTA4F-HSW-4W cable

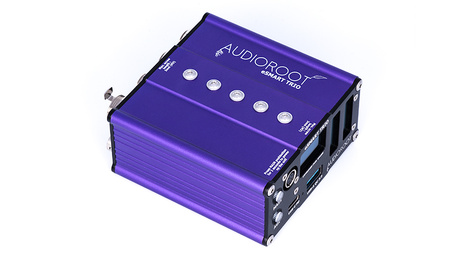

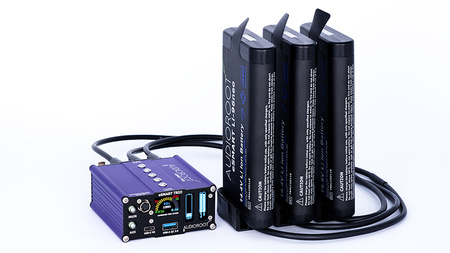

The AUDIOROOT eSMART TRIO is an advanced portable smart battery power distribution system for location sound recordists. It can accept up to 3 independent power sources (3 batteries or 2 batteries + 1 AC/DC external power supply) and distributes power via 8 x DC connectors and 2 x USB ports.
This product was designed to offer sound location recordists a wide variety of solutions to power their devices. With the eSMART TRIO users can benefit from advanced features like battery hot swapping and/or AC power with battery backup, smBUS data flow through, overcurrent/short circuit fault detection and more…

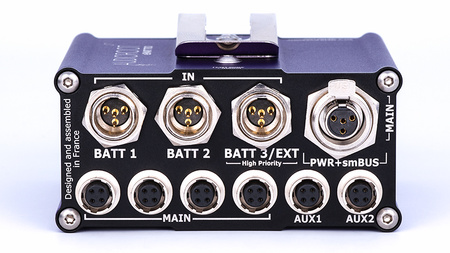

The eSMART TRIO offers 7 industry standard Hirose™ compatible DC output connectors as well as a Switchcraft™ compatible TA4F output connector with smBUS battery data aggregation.
The distributor also offers 1 x USB-A Quick Charge 3.0 port and 1 x USB-C port with Power Delivery. Finally all battery and power information is displayed on a 3 OLED displays.
Specifications:
IMPORTANT NOTE :
The eSMART TRIO was designed for use with smart batteries. Basic support enabling the use of standard batteries has been added with firmware v1.1. However when using standard batteries the eSMART TRIO will only be able to display voltage information. Other information such as current, power, estimated run time and capacity will never be available when using standard batteries.
